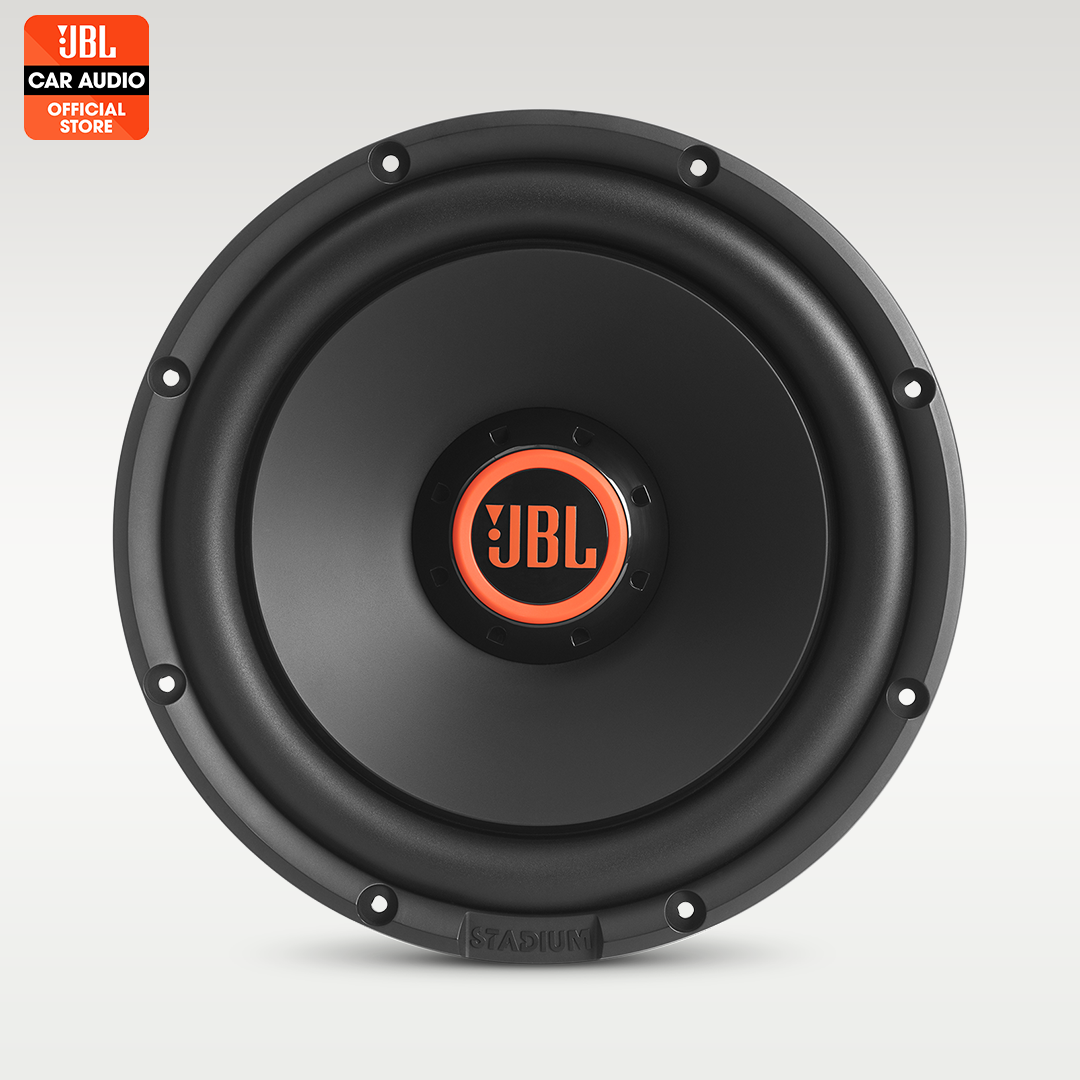

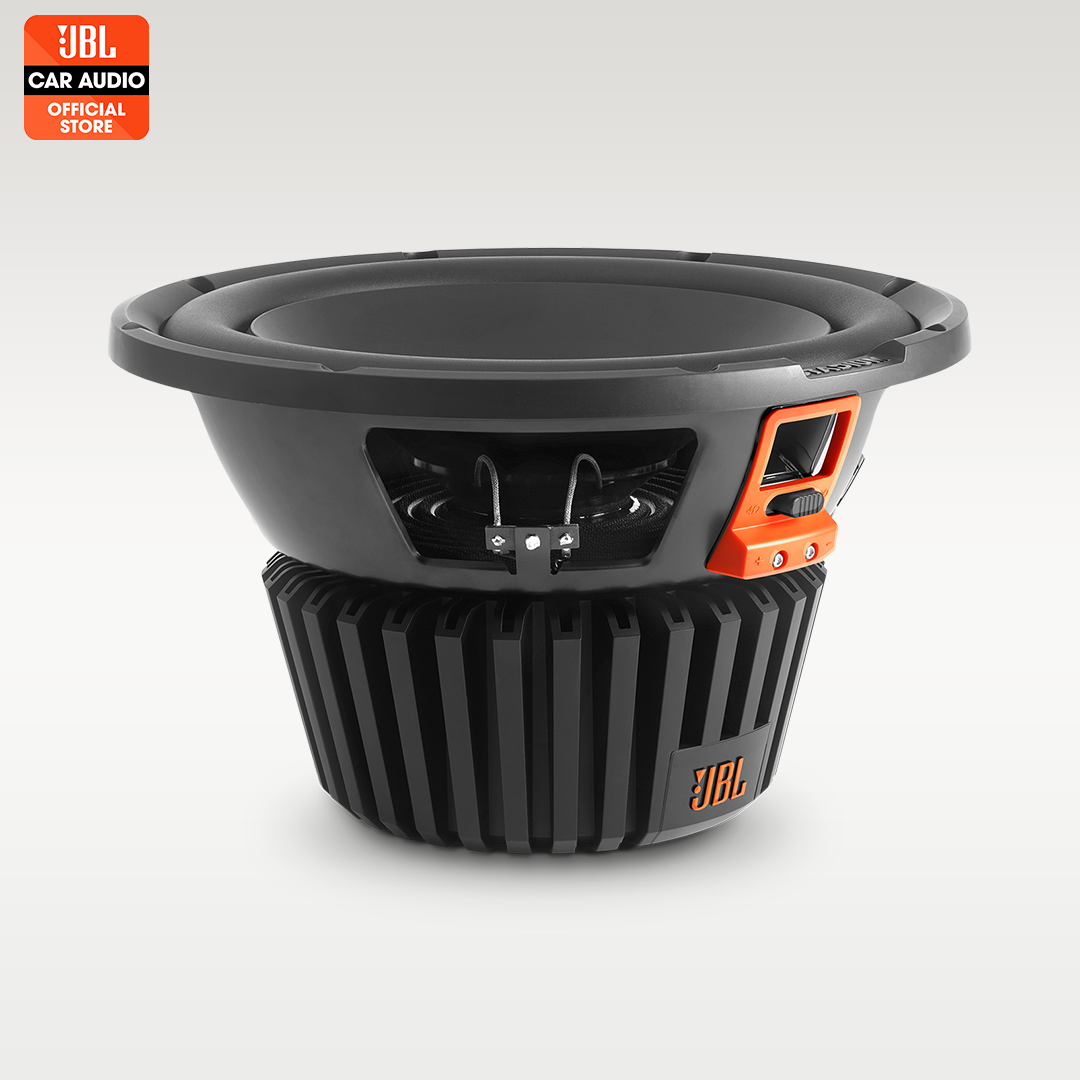

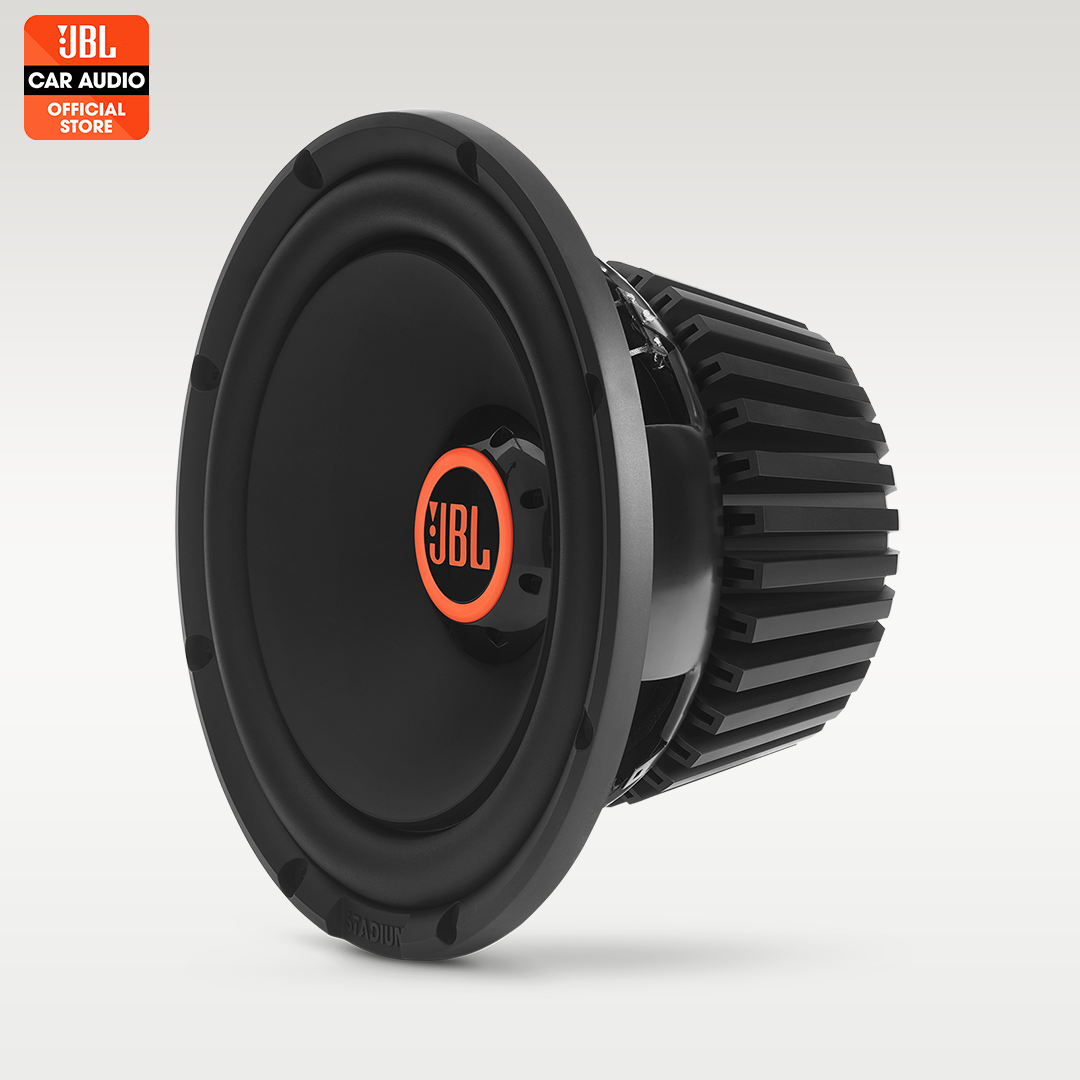

JBL Stadium 1224 | 12" Inch High-Performance Subwoofer
RM1299.00
A subwoofer that puts you in the driver’s seat. JBL believes sound quality should never be compromised. And Stadium subwoofers make sure you don’t have to compromise flexibility, either. That’s because these high-performance subwoofers feature SSI™ (Selectable Smart Impedance), a patented impedance switching technology that lets you select the optimum impedance – 2 or 4 ohms – for your system. We have also engineered aero-cooling in the voice coil to boost power handling as well as reliability. Plus our oversized voice coil handles more power than common two-inch voice coils. More power, more reliability, more flexibility – and no compromising. When you’re ready to step up, Stadium is your subwoofer.
SSI™ (Selectable Smart Impedance)
Most car audio system designs call for 2- or 4-ohm impedance. Stadium subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option. Not available from any other manufacturer, SSI lets you reconfigure your system by simply flipping a switch.
Aero-cooled voice coil
The Stadium voice coil significantly increases power handling and improves reliability by going with the flow – of air. The woofer’s motor channels air pumped by the cone movement past the voice coil, and the voice coil former exposes the coil’s inner and outer surfaces to the airflow. This aero-cooling design is unique among aftermarket subwoofers.
Oversized voice coil
The three-inch (75mm) voice coil proves you don’t have to be a heavyweight to pack a serious punch. It handles more power than conventional two-inch voice coils, yet it’s lighter than four-inch voice coils. It strikes the perfect balance between thermal power handling and low mass.

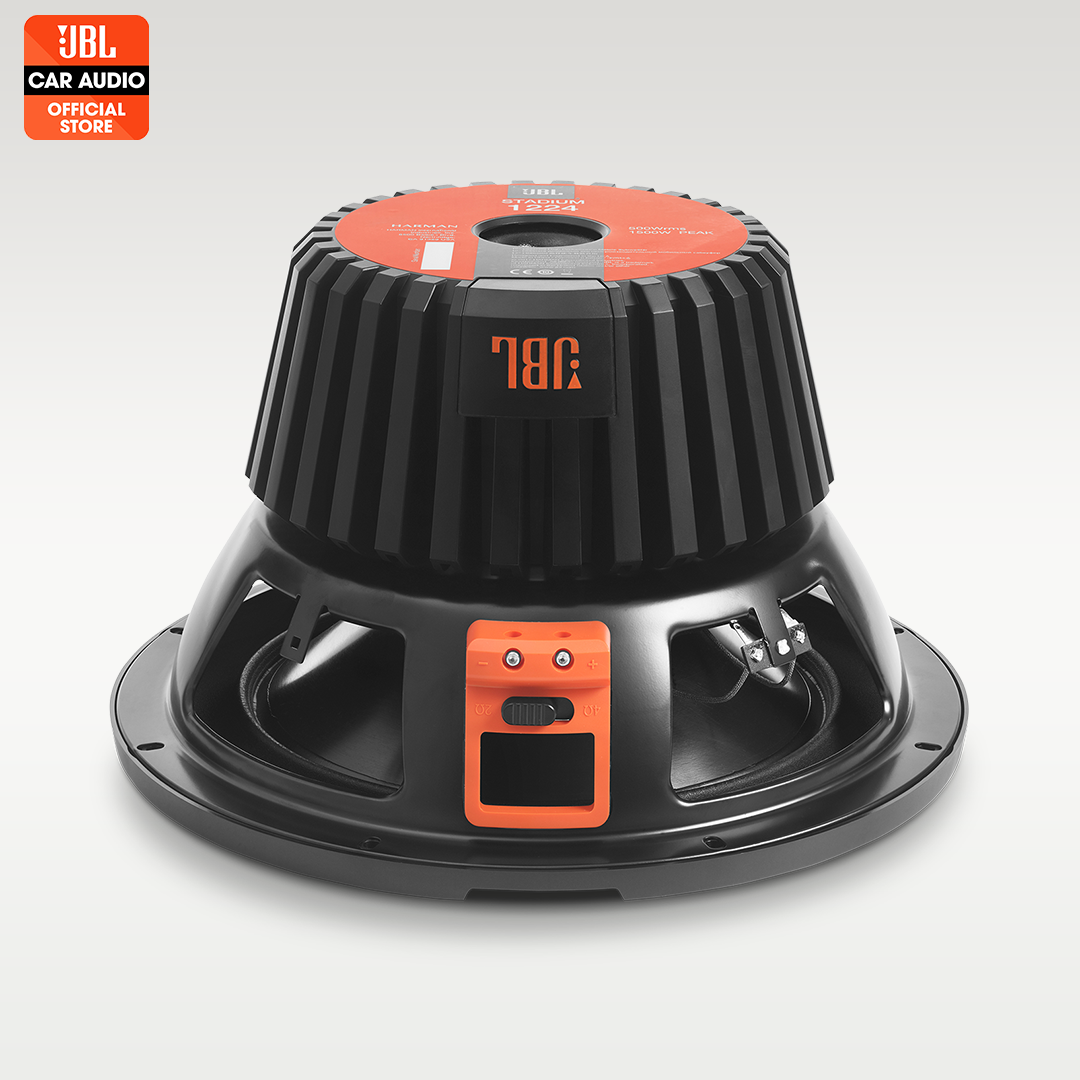

Premium screw-down terminals
Power is the lifeblood of any subwoofer. The terminals on the Stadium accommodate up to 8-guage wire (8.37mm2 cross section), which transfers low-resistance, low-loss power to the woofer, even over long wire runs. This ensures the subwoofer – and your music – has the power it needs.
Description: 12" (300mm) car audio subwoofer
Power Handling: 500W RMS, 1500W peak
Sensitivity (@ 2.83V): 92dB
Frequency Response: 25Hz – 175Hz
Voice Coil Diameter: 3" (75mm)
Impedance: 2 or 4 ohms
Cutout Diameter: 11-1/8" (282mm)
Mounting Depth: 7" (177mm)
Weight | 10.00 |
Dimensions (W x H x L) (cm) | 40 x 26 x 40 |
1x subwoofer
1x Owner’s manual
