JBL DSP 4086 | 8-channel Class D Amplifier Design with Digital Signal Processing
RM3,688.00 RM3134.80

Engineered for the ultimate sound experience. JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy to use tuning interface a novice can understand and detailed tuning capabilities to satisfy even experienced installers. With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.

- +

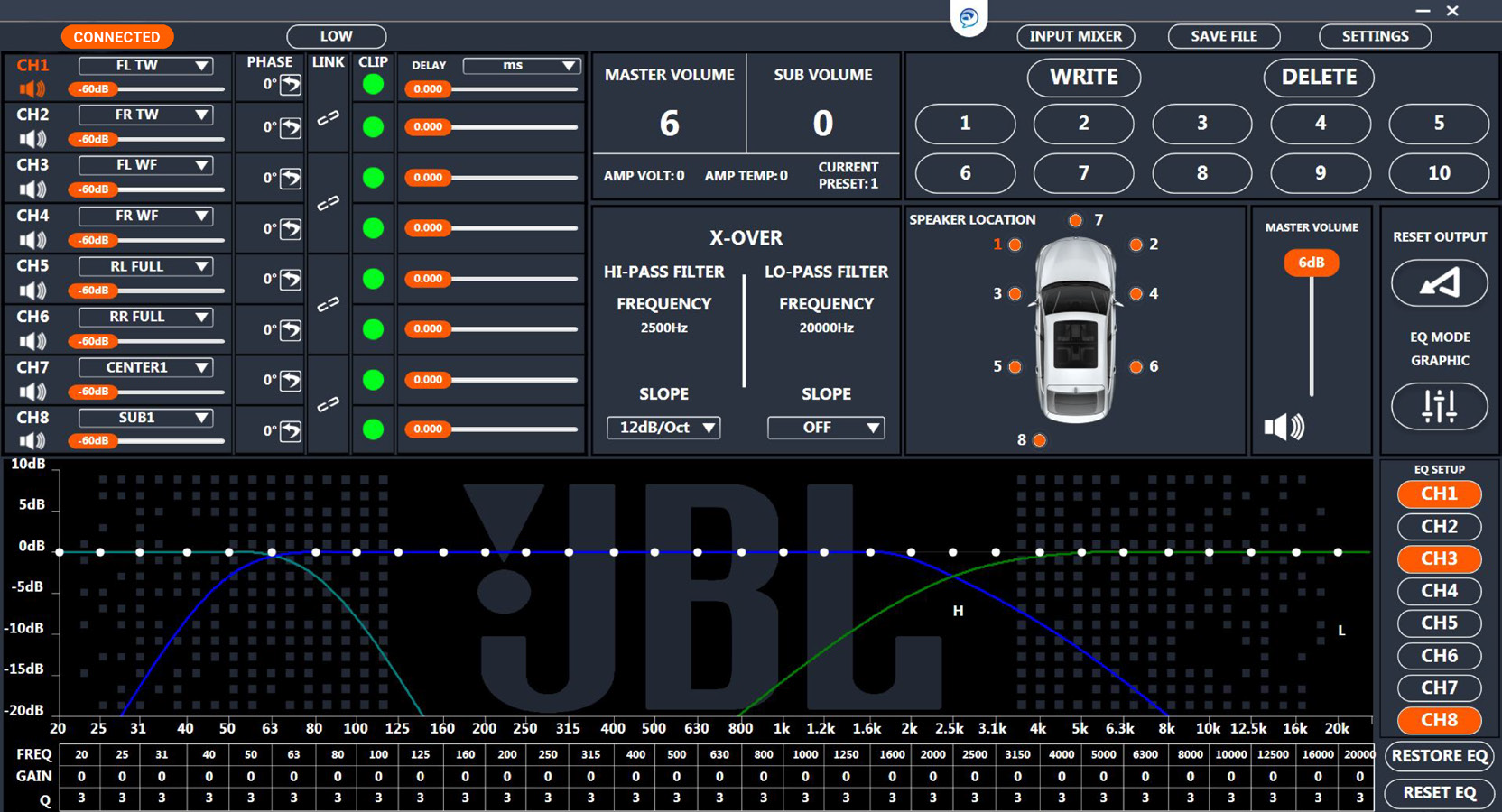

Small footprint, All-in-One Class D Amplifier with DSP Control JBL DSP Amplifier has everything you need to create a professional sound quality audio system with the ability to mount your amplifier in tight spaces. Everything You Need to Get Started JBL DSP Amplifier has everything you need to create an audio system, or expand your existing one, plus the ability to add more power by using it as a line driver when you are ready for your next power upgrade. Simple Tuning Interface with Complex Features Easy-to-use tuning interface anyone can understand, learn and control with enough horsepower to satisfy experienced installers. The Windows PC user interface includes variable crossover control, 0-to-48dB selectable slopes, 31-band parametric or graphic EQ adjustment, time delay in 0.2ms, output clipping indicator, assignable input to output mixer with input channel summing, output channel gain, master volume control, clipping indicator and ability to save up to 10 presets. Versatile Connectivity This amplifier has balanced differential inputs to provide you with the best sound quality & noise rejection, can accept RCA or speaker-level inputs so it’ll work in almost any system, and the package includes screw-on RCA-to-bare wire adapters for the speaker-level signal. Plus, all wire connections are conveniently labeled to make installation a cinch. Convenient Bass Control Wired remote control allows for quick adjustment of low frequency output with -30 to +6dB adjustment directly from the driver’s seat. Conformal Coated PCB Your JBL DSP Amplifier is engineered to withstand harsh conditions present in a wide variety of applications, using conformal coated circuit boards to ensure flawless power delivery, year after year. Harman Standard Reliability Testing JBL is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world class experience that lasts and lasts. JBL Industrial Design At JBL, we take pride in our iconic design heritage. Our design team took great care to ensure that your JBL DSP Amplifier will look amazing mounted wherever your music takes you. The smooth curve of the amplifier body, angular end cap design, and digitized JBL logo all tie together with our classic, current and future design language while concentrating on the design of your lifestyle.
Max Power: 1000W peak RMS Power Output @ 2Ω: 60W x 8, <1% THD+N RMS Power Output @ 4Ω: 40W x 8, <1% THD+N Variable crossovers with hi-pass, lo-pass, band-pass capability & adjustable 0–to–48dB slopes Selectable EQ adjustment: Parametric or Graphic Selectable 12V/Signal Sense/DC Offset turn-on modes, with 12V remote output Frequency Response: 10Hz to 22kHz @ -3dB Signal-to-Noise Ratio: >90dB @ 4Ω Subwoofer Level Control: -30dB to +6dB Fuse Rating: 40A Operating Voltage: 8V to 16V
Weight 3.00
Dimensions (W x H x L) (cm) 19 x 9 x 39

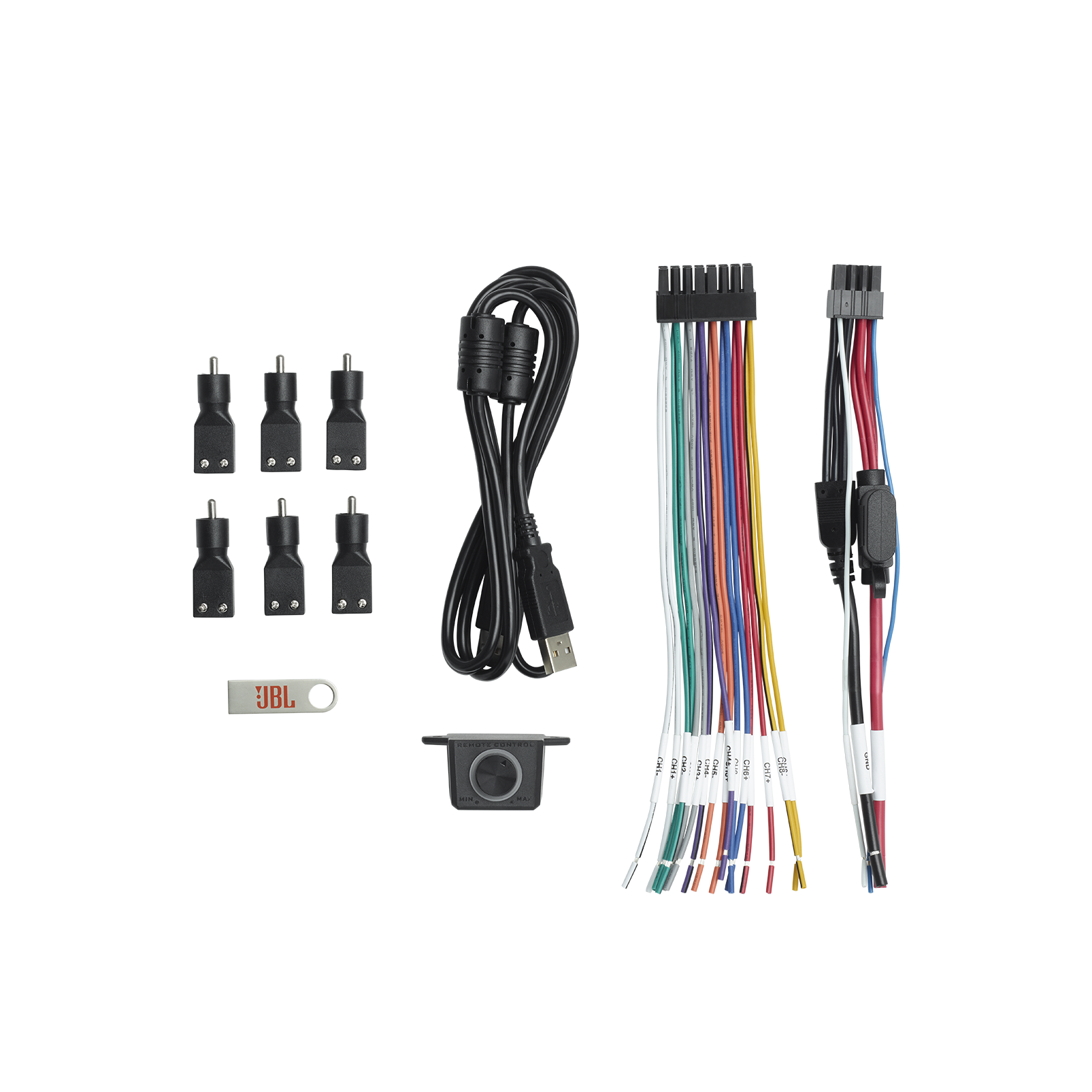

1x DSP Amplifier 1x Wiring Harness 1x USB Drive with Tuning Software 1x USB Tuning Cable 1x Wired remote level bass control 1x Mounting hardware 6x hi level input adapters 1x Spare fuse 4x wire ties 2x JBL sticker 1x Quick Start Guide
