JBL Club 9600C | 6" x 9" Inch 2-Way Component Speaker
High performance – for everybody.
Club coaxial and component speakers bring legendary JBL sound to more vehicles. Their compact design means they’ll fi t in most cars and trucks on the road, while high sensitivity delivers outstanding performance, even when they’re powered by factory stereos. Rugged polypropylene cones with the Patented Plus One™ design deliver hard-hitting bass and long performance life. PEI balanced dome tweeters play smooth highs. Available in a range of standard sizes – 3", 4", 5-1/4", 6", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component – they’re the perfect upgrade from factory speakers

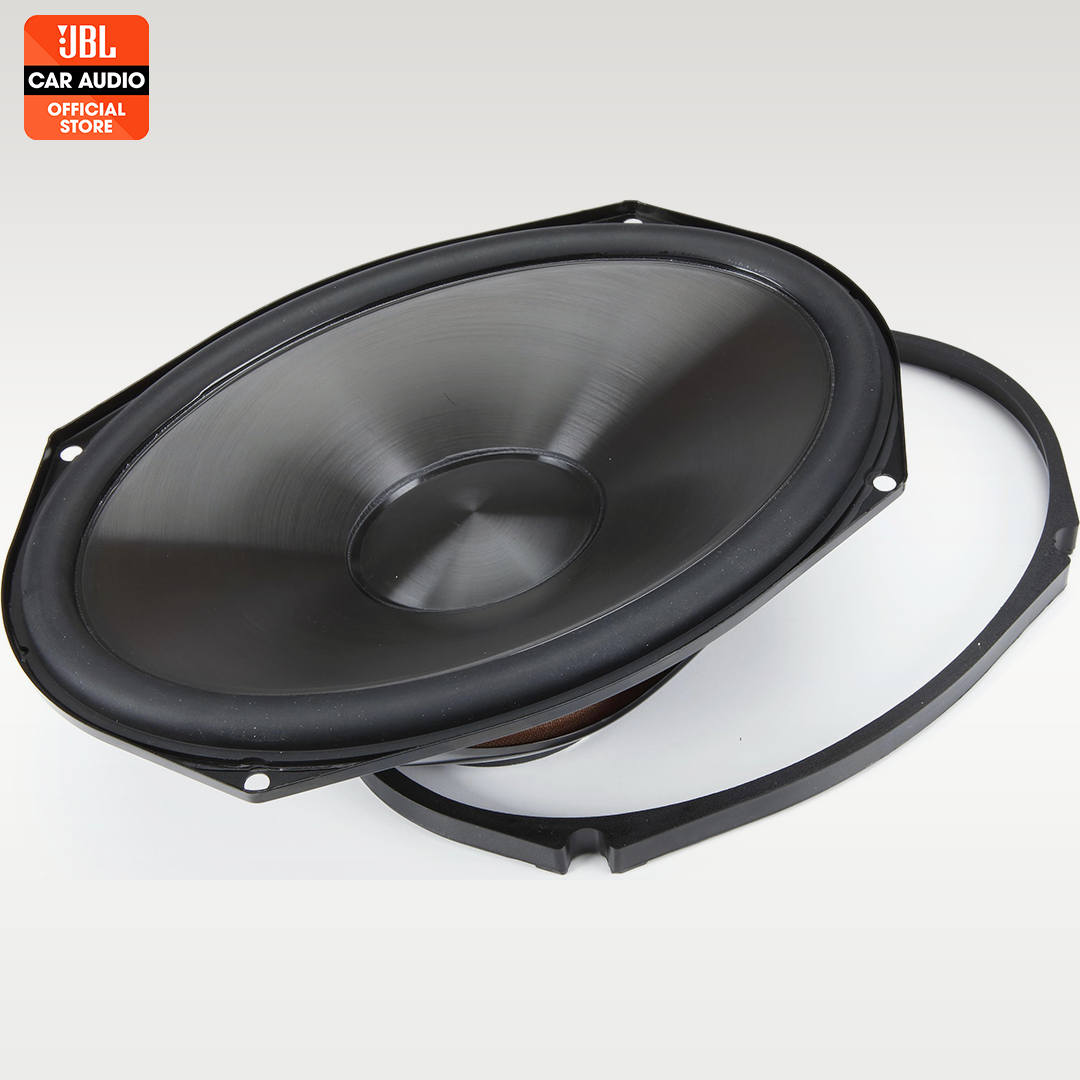

Acoustically damped, UV-resistant polypropylene cone
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.
Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and greater musical character.

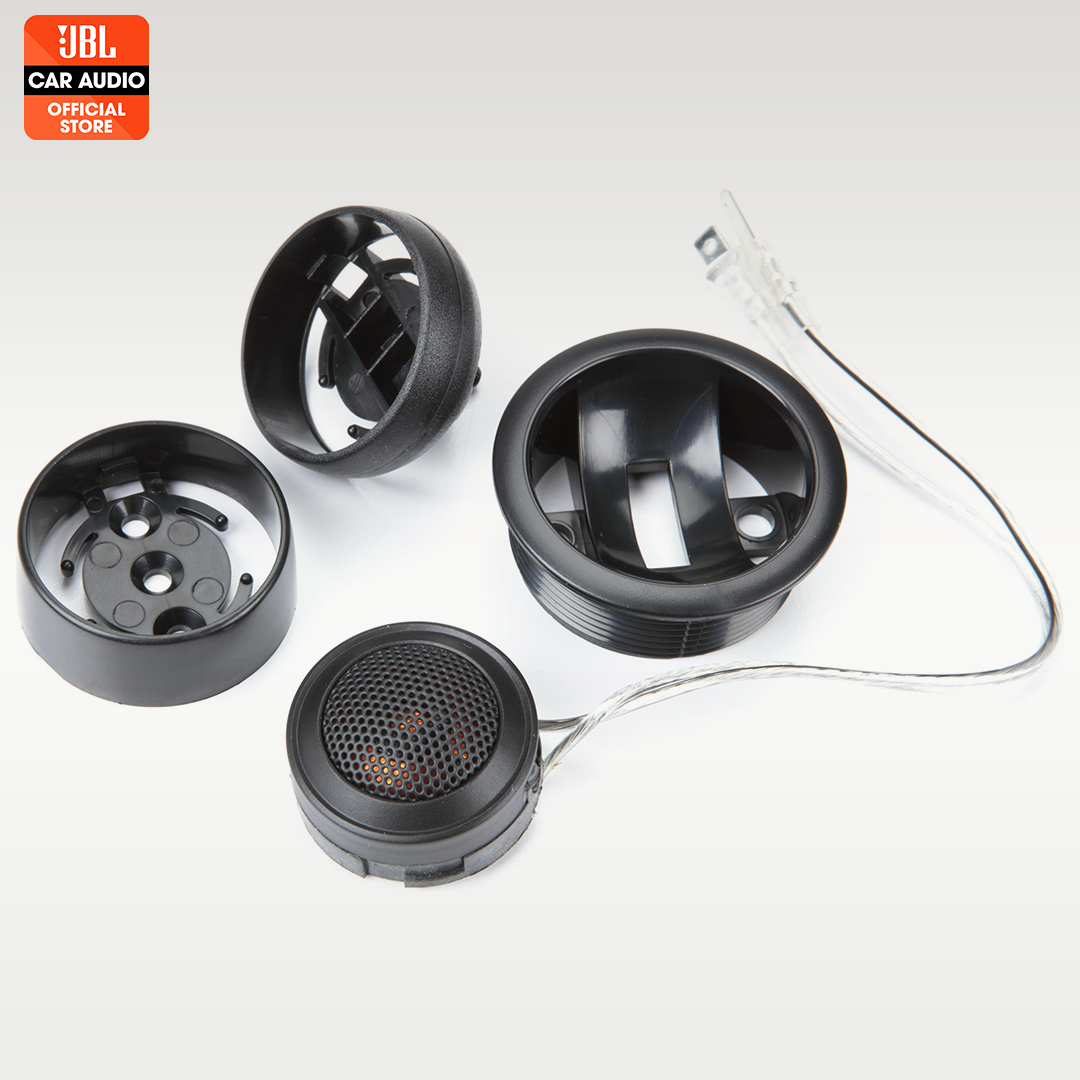

PEI balanced dome tweeters
Club speakers play smooth, clear high frequencies with excellent dispersion, thanks to the PEI balanced dome tweeters.
Club speakers’ efficiency produce plenty of sound from the power they’re fed, making them ideal for any application, even when they’re driven by relatively low-powered factory stereos.
Adjustable tweeter output level
The new added model -club 6522 offer a tweeter output level control of 0dB or +3dB to optimize system linearity based on installation location.
Reduced critical dimensions
Club speakers are available in a range of standard sizes, and feature a compact design that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles.
Club speakers provide signature JBL sound at affordable prices.

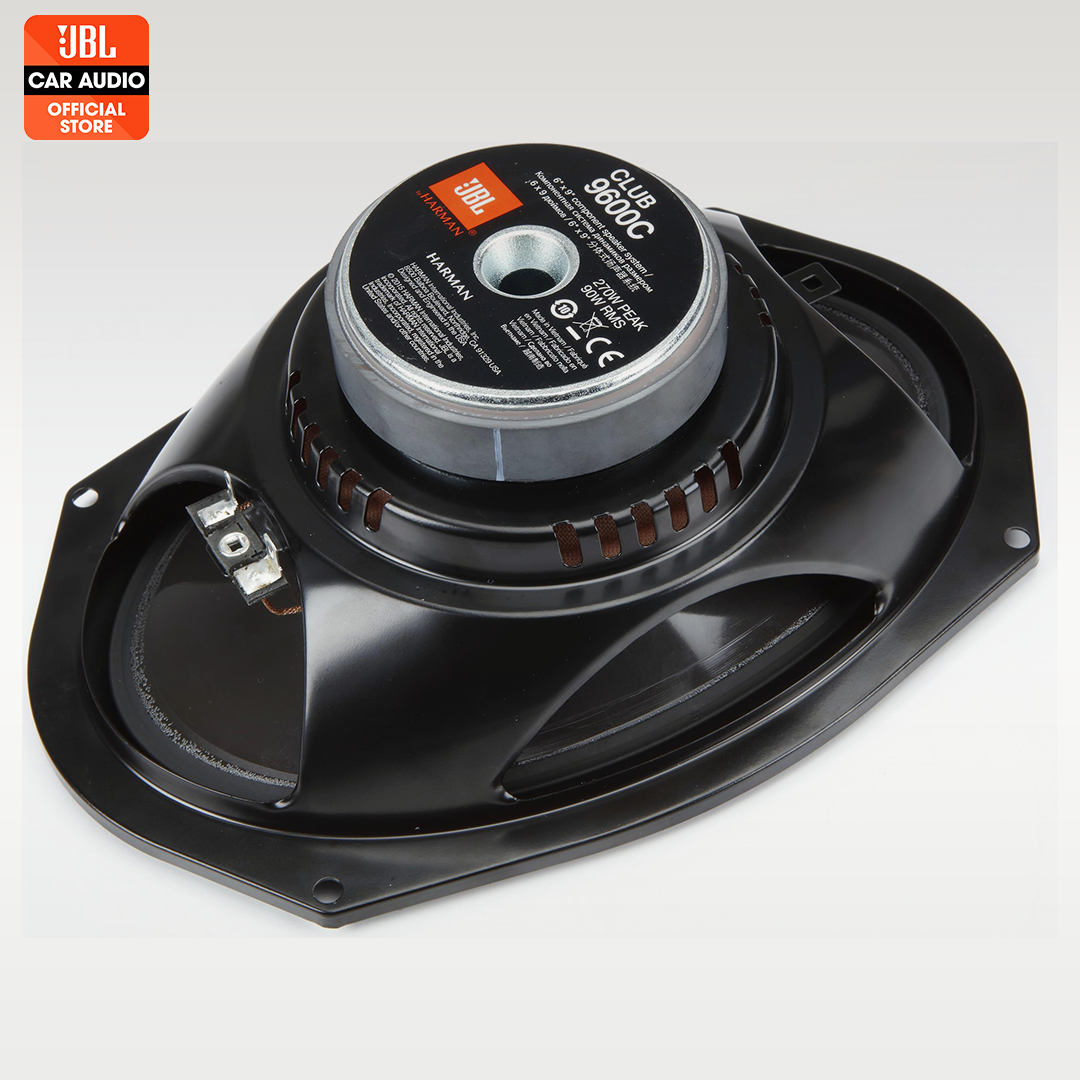

6" x 9" Inch 2 Way Component Speaker
Impedance (ohms): 3
Power Handling: 90W RMS, 270W peak
Sensitivity (@ 2.83V): 93dB
Frequency Response: 50Hz – 20kHz
|Dimensions (W x H x L) (cm)
||30 x 19 x 39
1x pair of woofers
1x pair of tweeters

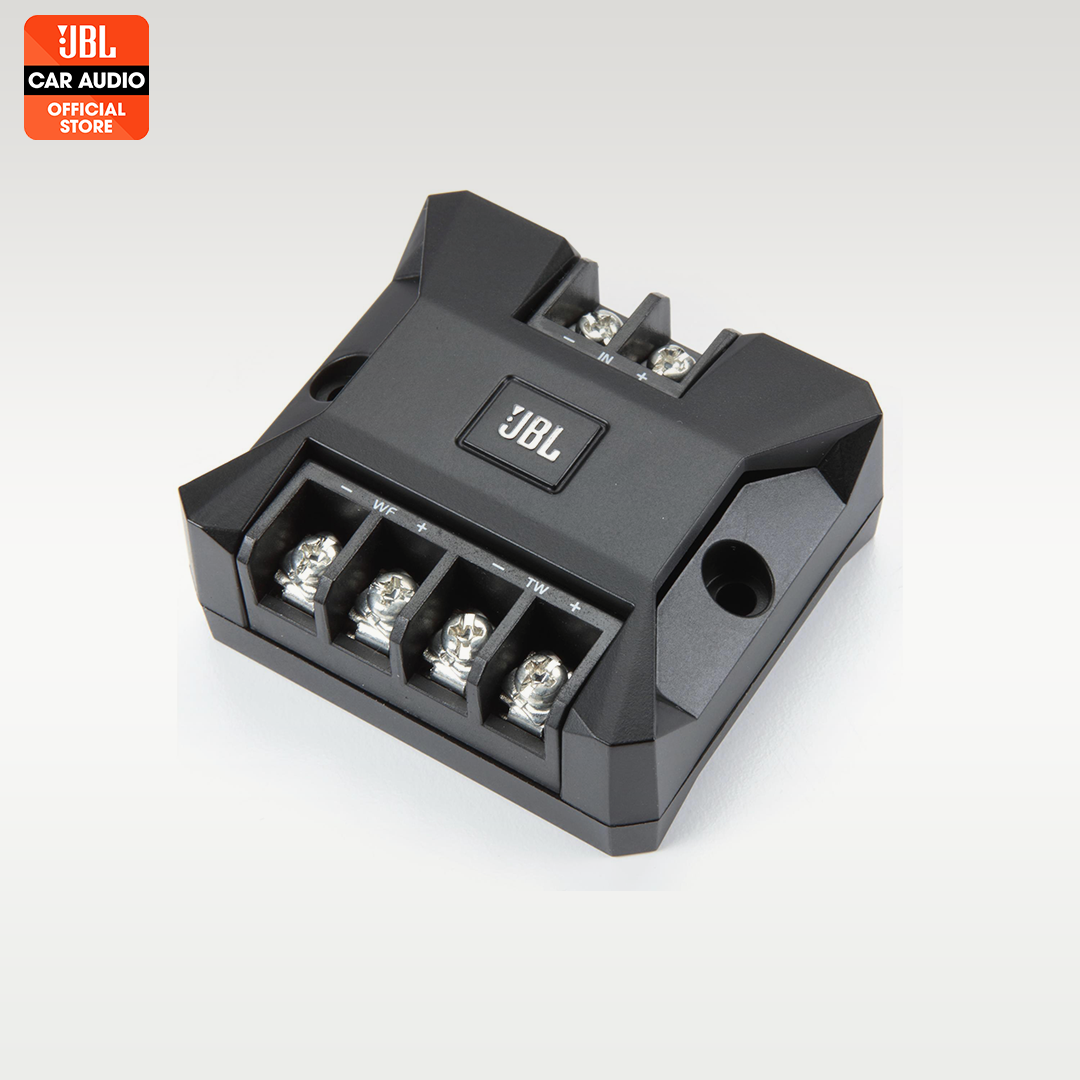

1x pair of crossovers
1x pair of tweeter surface mount accessories
1x pair of tweeter flush mount accessories
1x pair of tweeter nuts
1x pair of tweeter flat washers
1x pair of woofer spacers
1x pair of woofer grilles
6x tweeter mounting screws
8x woofer mounting screws
8x crossover mounting screws
8x speed clips
1x Foam mounting tape
1x Owner’s manual
