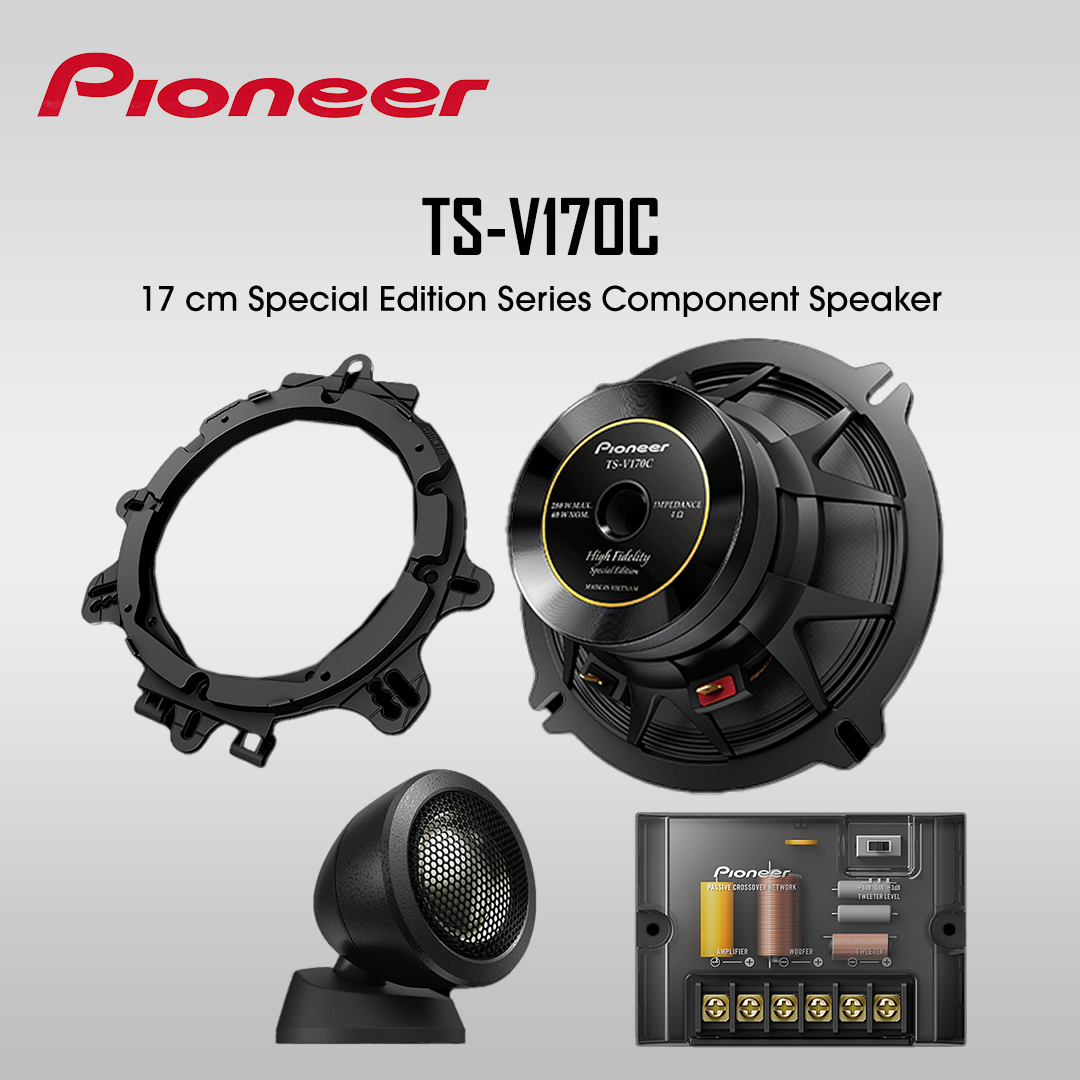

PIONEER TS-V170C | 17 cm Special Edition Series Component Speaker
RM2688.00
The TS-V170C (High Fidelity Special Edition) is the breakthrough result of combining Pioneer’s speaker engineering expertise and new design techniques to achieve high fidelity sound. By incorporating Pioneer's "Open & Smooth" sound concept, we can eliminat the attenuation and turbulence of the midrange in the car. With the combination of carefully selected high-quality parts and materials, we can achieve rich mid-range reproduction thus create a realistic experience for the listener.
• Basket Material: Aluminum Die-Cast
• Crossover Frequency: 4,500 Hz
• Tweeter Level Adjustability: +3 dB, 0 dB, -3 dB
• Swivel Type: Yes
• Magnet Weight: 6.4 g
• Magnet Material: Neodymium
• Diaphragm Material: Aluminum
• Diameter: Φ29 mm
• Type: Balanced Dome
• Mounting Depth: 57 mm
• Magnet Weight: 250 g
• Magnet Material: Strontium
• System Type: 2-way Component
• Surround Material: Meta-Aramid Fiber Corrugate Surround
• Center Cap Material: PET (polyethylene terephthalate)
• Drive Cone Material: -
• Cone Material: Dual-layer Aramid Fiber Cone
• Diameter: 17 cm
• Nominal Impedance: 4 Ohm
• Maximum Peak Power Handling: 280 W
• Continuous Power Handling (RMS): 60 W
• Hi-Res Certified: Yes
• Frequency Range: 33 Hz to 64,000 Hz (-20dB)
• Sound Pressure Level (Sensitivity): 90 dB
