JBL Club 602C | 6.5" Inch (160mm) 2-Way Component Speaker System
Pro Car Audio by JBL.
Club coaxial and component speakers bring JBL pro sound to more vehicles. Their compact design means they’ll fit into more vehicles than many of our competitors, and their high sensitivity delivers outstanding performance even with modestly-powered factory systems. Rugged polypropylene cones with the Plus One™ design deliver hard-hitting bass and long performance life. Edge-driven silk dome tweeters deliver broader and smoother high frequency response, never harsh regardless of output level. Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit in component speaker system for easy installation. Available in a range of standard sizes — 3", 4", 5-1/4", 6-1/2", 6" x 8", 4" x 6", 6" x 9", and 3/4" — they’re the perfect upgrade from factory speakers.

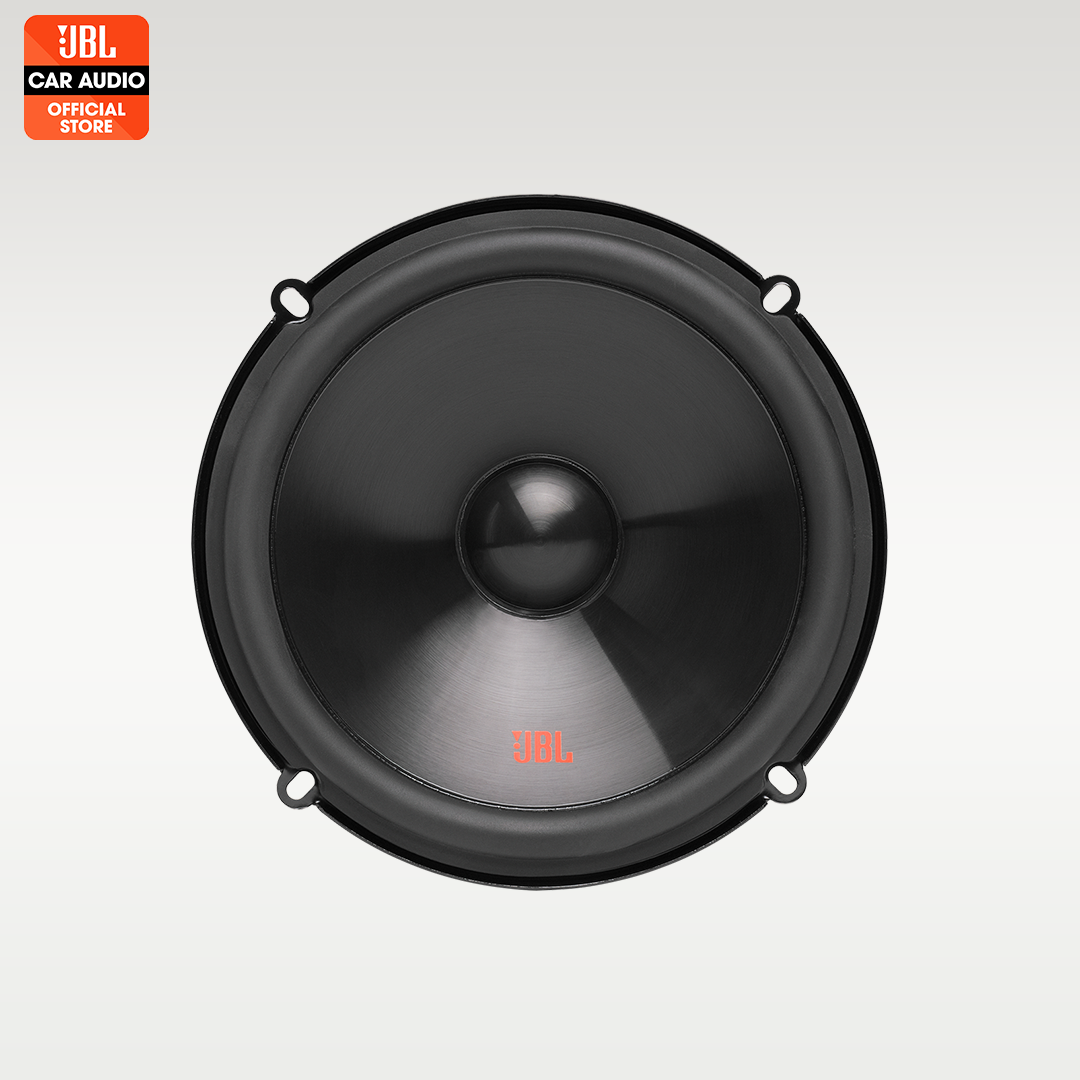

Plus One™ Woofer Cone Architecture
Patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other speakers for the same size, resulting in higher sensitivity, increased low-frequency output and greater musical character.
Edge-driven Silk Dome Tweeter
The Club 422F, Club 522F, Club 622, Club 8622F, Club 9632 feature a full, edge-driven silk dome tweeter, which delivers a broader and smoother high frequency response, never-harsh regardless of output level than more commonly used w-domes.
Specified Shallow Design for More Mounting Application
Club 620F specified compact design for 6-1/2" that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles.
Adjustable Tweeter Output Level
The Club 622, Club 602C and Club 602CTP component systems offer a tweeter output level control of 0dB or +3dB to optimize system linearity based on installation location.
Acoustically Damped, UV-Resistant Polypropylene Cone
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.

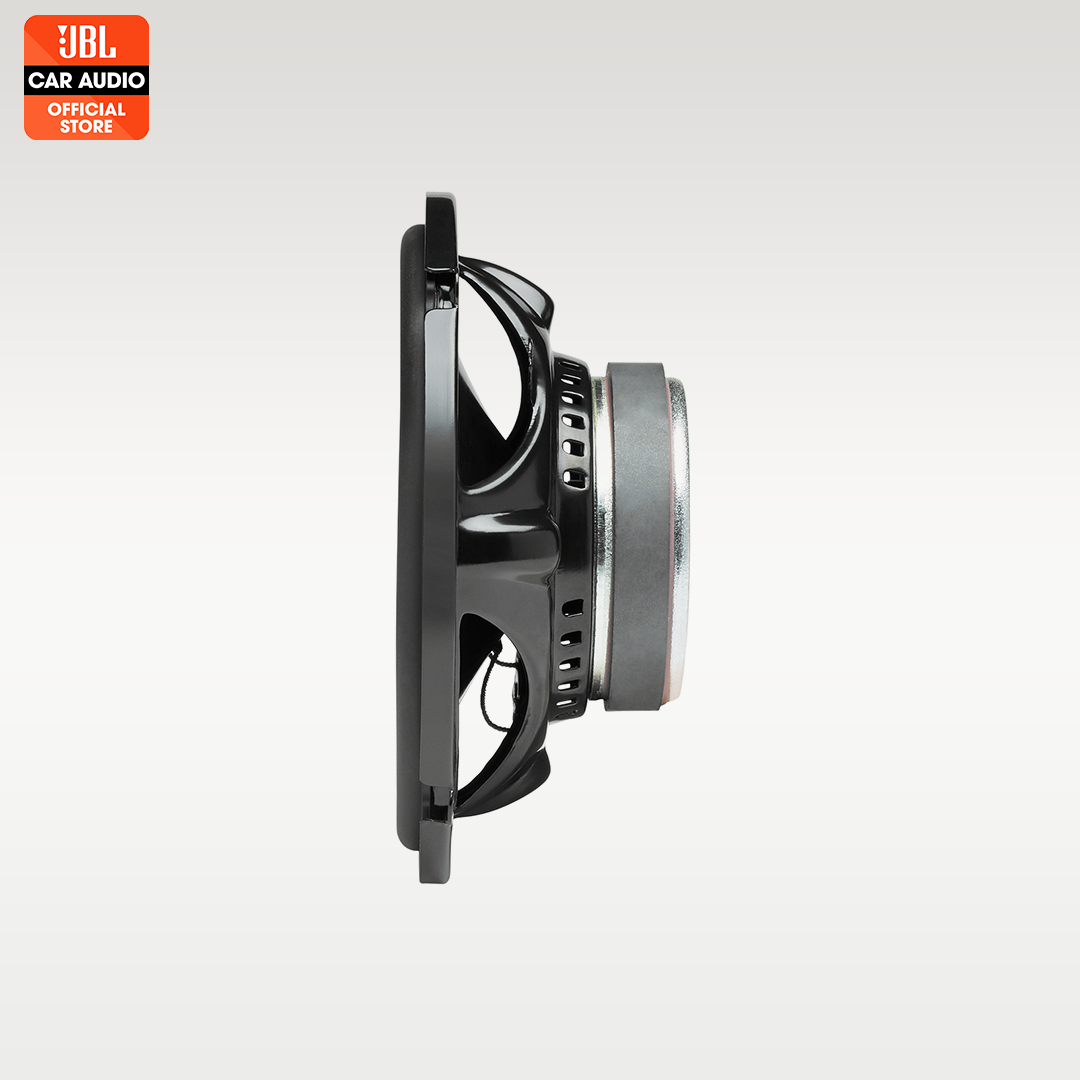

Bigger Magnet, Bigger Power Handling
The new Club lineup features a larger magnet delivering higher power handling than competitors at similar price points.
Special Tweeter Pod Design for Acoustic Adjustment on Different Listening Position
The Club 602CTP Component Speaker system not only including the Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit but also offering the new installation possibility-Tweeter Pod. It is easy to install, more importantly, the tweeter pod can adjust the angle by up and down even after mounting, which allow you to control the acoustic performance on different listening position.
Starfish™ Tweeter Mounting Adapter
The club 602C component Speaker system come with the Starfish™ tweeter mounting adapter. The Starfish tweeter mounting adapter allows for easy installation of the tweeter behind factory grilles and in locations such an A-Pillar. It also provides six break-off mounting tabs to accommodate many mounting configurations. The tweeter can be surface- or flush-mounted. The tweeter can be easily serviced, and doesn’t require removing the whole assembly.
I-Mount Tweeter Mounting Kit
The I-Mount™ (patent no. 5,859,917) tweeter-mounting system allows easy and versatile installation of tweeters in each of the component systems. It includes a flush cup and surface-mount mounting hardware. With a 1-3/4" cutout and a 1" mounting depth, installation becomes a snap. This allows the tweeter to be flush-mounted and can be angled up to ±40 degrees. Locknuts are included to keep everything in place, and the tweeter can be replaced without removing the whole assembly.
6-1/2" (160mm) Two-Way Component Speaker System
Power Handling: 70W RMS, 210W peak
Sensitivity (@ 2.83V): 92dB
Frequency Response: 55Hz – 20kHz
Nominal Impedance: 3.0 ohms
|Dimensions (W x H x L) (cm)
||21 x 13 x 42
2 x Speakers

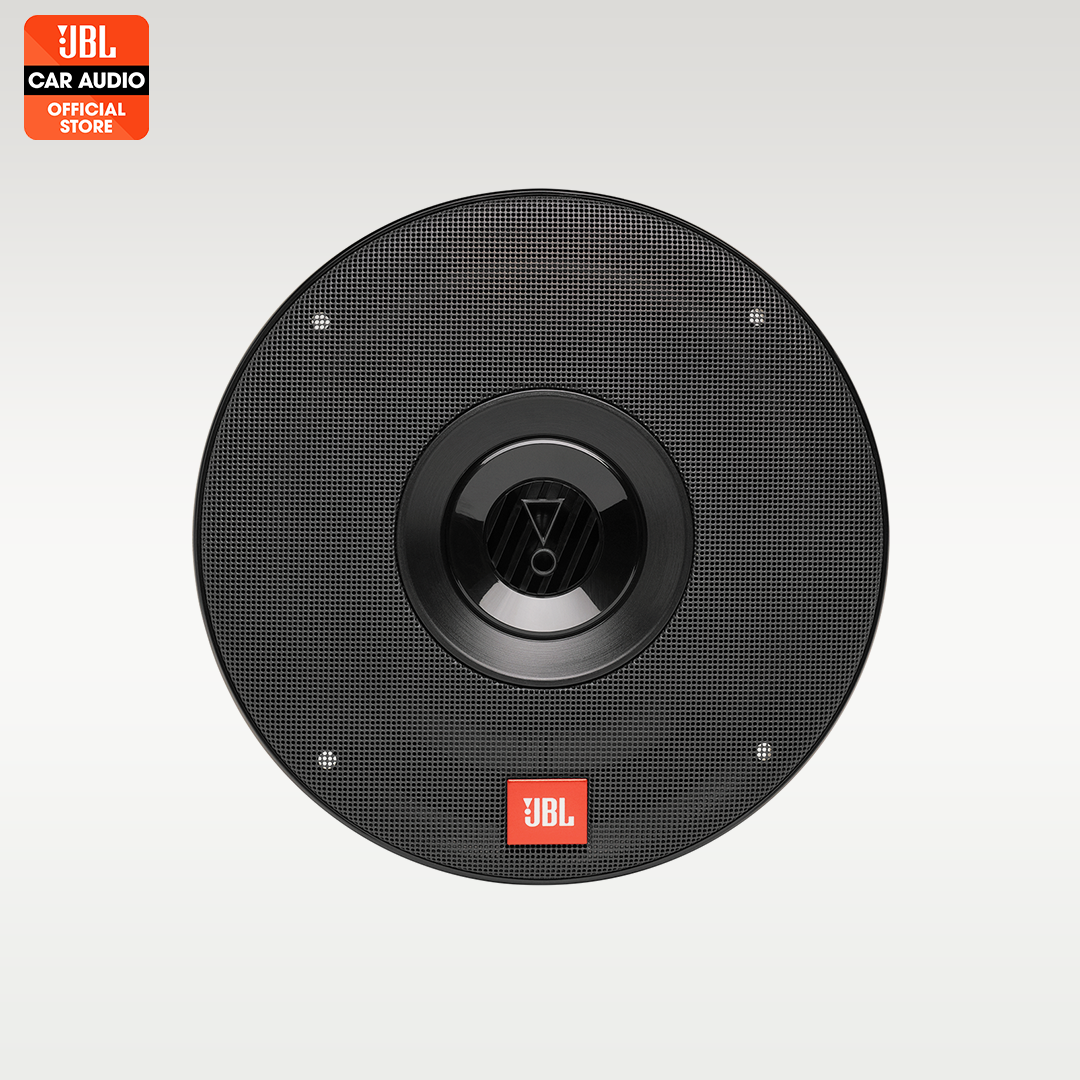

2 x Grilles
2 x Plastic multi-hole adapter rings
1 x Foam gasket

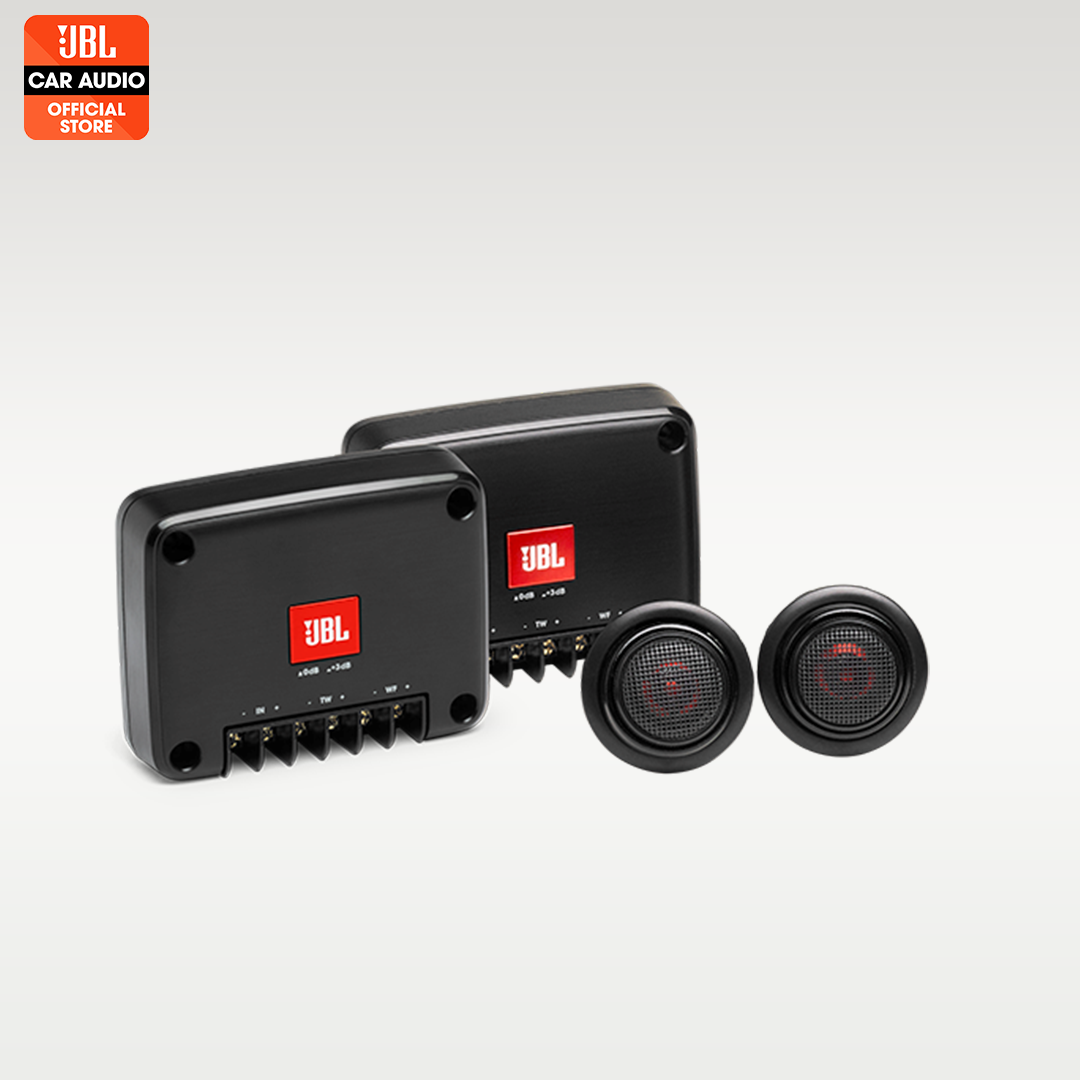

2 x Crossovers
2 x Tweeters
2 x Flush-mount cups
2 x Threaded flush-mount adapters
2 x Surface-mount cups
2 x Starfish tweeter mounts
2 x Plastics locking nuts
30 x Screws
8 x Speed clips
2 x Spacers
2 x Washers
